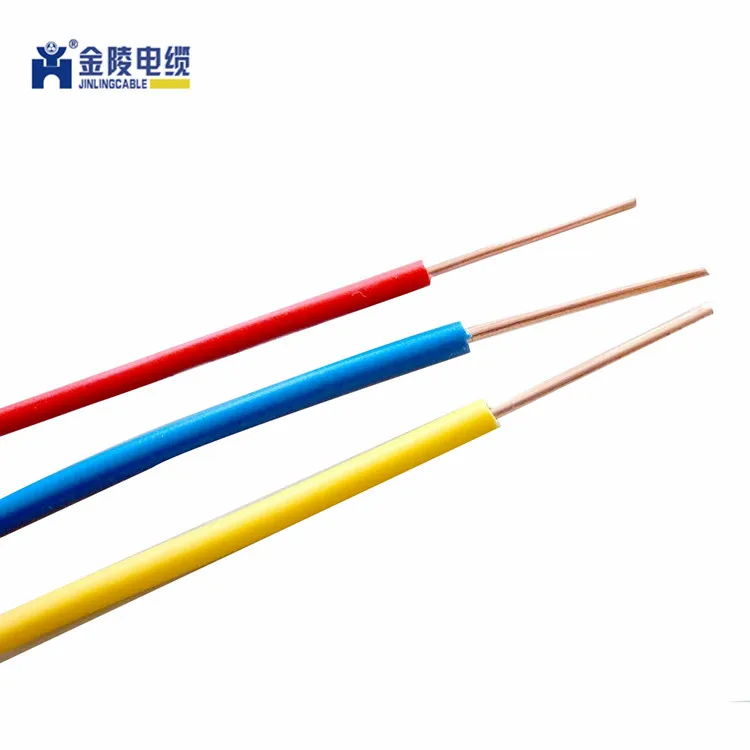

Construction:
Bare Copper Conductor, PVC Insulation
Application: For building wire installed in conduit in dry location and inter wiring in switchboard and control panel.
Special Features on Request:
• Fire Resistance
• Oil Resistance
• Flame Retardant Cat. A, B, C
• Flame Retardant Non Category
Standard Packing:
• 1.5 - 16 mm2 supplied in coil with 100 meters
Technical Data:
Conductor: Solid Copper, class 1
Test Voltage: H05V-U: 2000V
Working Temperature:-5-70 º C
Max. Conductor temperature: 70 º C
Short-circuit max. Conductor temperature:160°C
Insulation resistance: 10 MΩ x km
Cable Parameter:
|
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Minimum Insulation Resistance At 70ºC |
Nominal Weight |
|
No x mm² |
mm |
mm |
MΩ/km |
kg/km |
|
1 x 0.5 |
0.6 |
2.1 |
0.15 |
9 |
|
1 x 0.75 |
0.6 |
2.2 |
0.12 |
11 |
|
1 x 1 |
0.6 |
2.4 |
0.11 |
14 |
|
1 x 1.5 |
0.7 |
2.9 |
0.1 |
21 |
|
1 x 2.5 |
0.8 |
3.5 |
0.009 |
33 |
|
1 x 4 |
0.8 |
3.9 |
0.0085 |
49 |
|
1 x 6 |
0.8 |
4.5 |
0.007 |
69 |
|
1 x 10 |
1 |
5.7 |
0.007 |
115 |
